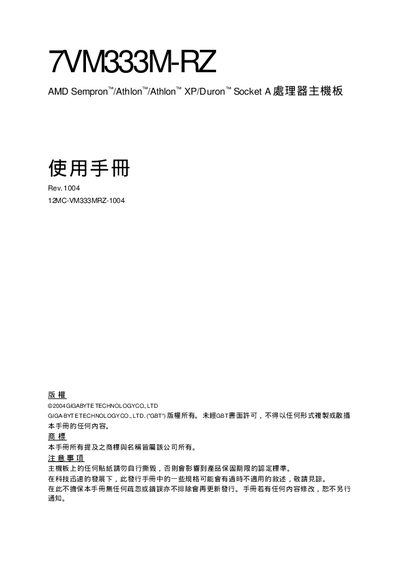

7VM333M-RZ user manual is a GIGABYTE TECHNOLOGY CO., LTD product AMD Sempron™ /Athlon™ /Athlon™ XP/Duron™ Socket A processor motherboard user manual. It provides detailed information about the motherboard's specifications, installation steps, BIOS settings, etc.
This manual covers safety precautions, hardware installation, BIOS configuration and driver installation for the Gigabyte 7VM333M-RZ motherboard. It includes detailed diagrams of the board layout, jumper settings, and connector locations.
The document also lists the technical specifications of the board, such as supported CPUs, chipset, memory capacity, expansion slots, and warranty terms, and provides contact information for global technical support. This manual is written in Chinese.
| CPU Support | AMD Sempron / Athlon / Athlon XP / Duron Socket A processors |
|---|---|
| Chipset | VIA KM266 Pro |
| Southbridge | VIA VT8235 / VT8237R |
| AGP Slot | AGP 4X (1.5 V) |
| PCI Slots | 3 PCI expansion slots |
| IDE Interfaces | 2 IDE channels (UDMA33/ATA66/ATA100/ATA133) |
| USB Ports | 6 USB 2.0 ports (front and rear) |
| Audio | SPDIF output, multiple audio jacks |
| Ethernet | 1 RJ‑45 LAN port |
| Form Factor | Micro ATX, 22.3 cm × 24.4 cm |
The board provides six USB 2.0 ports (four rear, two front).
