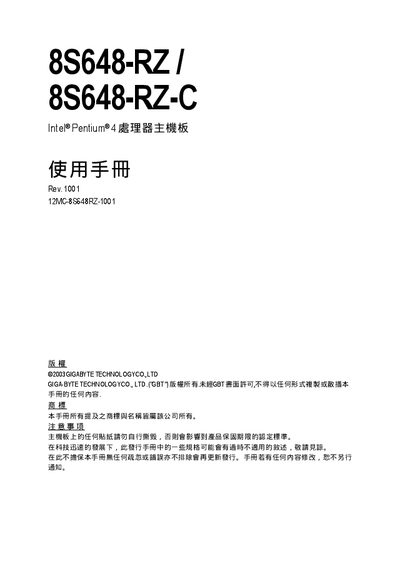

This document introduces the user manual for 8S648-RZ / 8S648-RZ-C motherboard produced by GIGABYTE TECHNOLOGY CO., LTD. The motherboard supports Intel® Pentium® 4 processors and includes a series of hardware installation steps and BIOS configuration instructions.
The Gigabyte 8S648-RZ motherboard manual provides detailed information on hardware installation, connector descriptions, and system configuration. It includes layout diagrams, BIOS and CMOS settings, and troubleshooting guidance for end users.
Technical specifications such as supported CPUs, memory types, expansion slots, and peripheral interfaces are listed, along with safety notices and warranty information. The document is intended for system builders and technicians working with Intel Pentium 4‑based platforms.
| CPU Socket | Socket 478 |
|---|---|
| Supported CPU | Intel® Pentium® 4 (Northwood, Prescott) |
| AGP Interface | AGP 8X/4X (1.5 V) |
| Audio Codec | CMedia 9761 |
It uses a Socket 478.
The board supports AGP 8X and AGP 4X (1.5 V).
