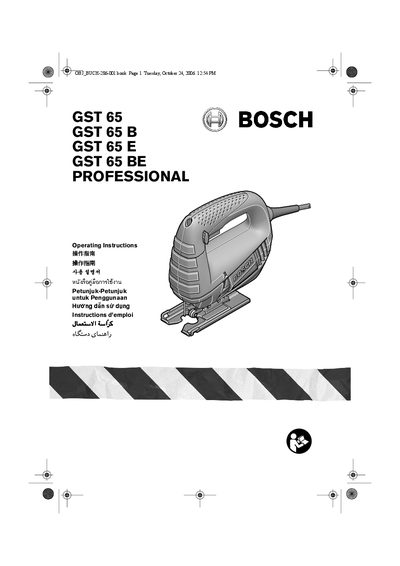

This manual describes the functions and operating instructions of the GST 65, GST 65 B, GST 65 E and GST 65 BE Professional (hereinafter referred to as “GST 65”).
This manual begins with general power‑tool safety warnings, covering work‑area safety, electrical safety, personal safety and proper use of the tool. It also explains the intended use of the GST 65 for cutting wood, plastic, metal and other materials, and lists the technical data and product features.
Later sections describe how to assemble and replace the saw blade, operate the tool—including stroke‑rate control, bevel cuts and parallel‑guide functions—and perform routine maintenance. Service and customer assistance information, including Bosch contact details and part‑number references, is provided at the end of the document.
| Rated power input | 400 W |
|---|---|
| Output power | 230 W |
| Stroke rate at no load | 3100 spm (500 – 3100 spm) |
| Stroke length | 18 mm |
| Maximum bevel angle | 45° |
| Protection class | II |
Press the lock‑on button toward the right or left to lock the switch.
The tool can reach up to 3100 strokes per minute.
