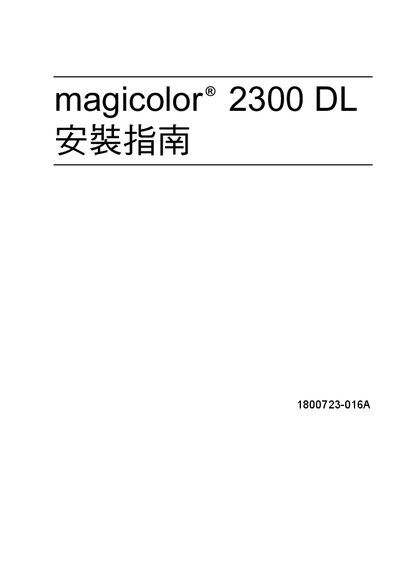

《magicolor 2300 DL Installation Guide》 is the installation guide for magicolor 2300 DL product, mainly introducing the installation steps and precautions.
This guide provides detailed instructions for installing the Konica Minolta magicolor 2300 DL printer, including hardware placement, cable connections, and software configuration. It also lists the printer’s components, daily operation tips, and troubleshooting advice.
Safety information, warranty considerations, and laser‑related cautions are included to ensure proper and compliant use of the device in various environments. This manual is written in Chinese.
| Resolution | 600×600, 1200×600, 2400×600 dpi |
|---|---|
| Memory | 32 MB SDRAM |
| Standard paper capacity | 200 sheets |
| Dimensions (W×D) | 390 mm × 700 mm |
| Laser max output power | 3 mW |
The printer requires a width of 390 mm (≈16 in) and a depth of 700 mm (≈27.6 in) with clear ventilation space around it.
The laser diode’s maximum output power is limited to 3 mW, and any operation beyond the specified limits may cause hazardous radiation exposure.
