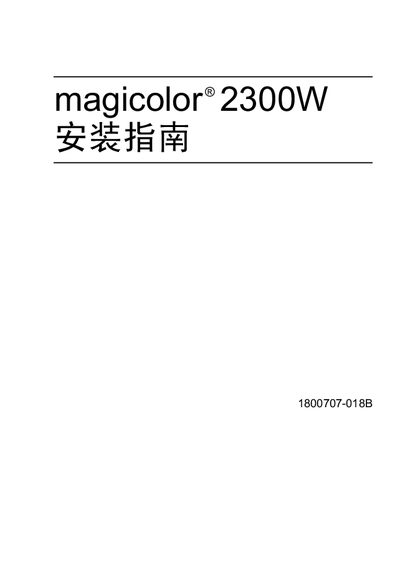

This is a magicolor 2300W installation guide, which introduces the product's features and characteristics.
The Installation Guide walks users through the steps required to safely unpack the magicolor 2300W, install the toner cartridges, connect power and data cables, and configure paper trays. It also includes diagrams of printer components and detailed instructions for positioning the unit on a stable surface.
Additional sections cover safety warnings for the internal laser module, warranty conditions, and recommended paper types. Users are directed to online resources for supported media lists and service support locations. This manual is written in Chinese.
| Print speed (A4, black) | 16 ppm |
|---|---|
| Print speed (A4, color) | 4 ppm |
| Resolution | 600 x 600, 1200 x 600 dpi |
| SDRAM | 32 MB |
| Standard paper tray capacity | 200 sheets |
| Duplex paper tray capacity | 200 sheets |
| Duplex printing | Optional |
| Parallel port | IEEE‑1284 (standard) |
The printer with consumables installed weighs about 28 kg (62 lb).
The printer requires a footprint of approximately 390 mm × 15.4 inches (front) and a depth of 700 mm × 27.6 inches (rear).
Paper tray 1 is a multipurpose tray that accepts all supported paper types, including envelopes, labels, postcards, thick paper, and transparencies.
No. The internal laser head components are not user‑serviceable and must not be opened under any circumstances.
