SNC-DS60/DS10 is a high-performance intelligent network dome camera that uses progressive scan and ExwavePRO technology, with high resolution, low illumination, and intelligent features.

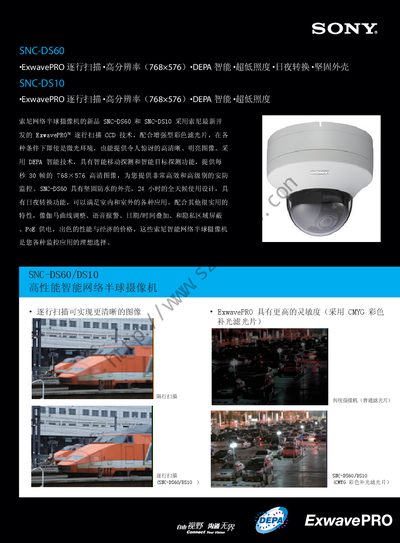

The manual describes Sony's half‑sphere camcorders SNC‑DS60 and SNC‑DS10, which feature ExwavePRO CCD sensors, DEPA intelligent functions, low‑light performance, and day‑night switching for indoor and outdoor use. It also covers optional accessories such as PoE power, privacy masking, and date/time overlay.
Technical specifications include sensor resolution, illumination requirements, optical zoom, video frame rates, audio codecs, power consumption, and physical dimensions. Network interfaces and supported protocols (TCP/IP, HTTP, FTP, SNMP, etc.) are also listed. This manual is written in Chinese.
| Effective pixels | 330,000 (659 × 500) |
|---|---|
| Minimum illumination (color) | 0.3 lx |
| Minimum illumination (B/W) | 0.05 lx |
| Signal‑to‑noise ratio | > 50 dB |
| Optical zoom | 3.6× |
| Horizontal angle of view | 73° |
| Minimum focusing distance | 300 mm |
| Maximum video resolution | 768 × 576 @ 30 fps |
| Audio codec | G.711 / G.726 (40, 32, 24, 16 kb/s) |
| Maximum power consumption | 15 W |
| Weight | 1.4 kg |
| Dimensions (W × H × D) | 166 × 119 × 140 mm |
It records up to 768 × 576 pixels at 30 fps.
It can be powered via PoE (802.3af) or a 24 V/DC 12 V supply, with a maximum consumption of 15 W.
The minimum illumination for color mode is 0.3 lx.
