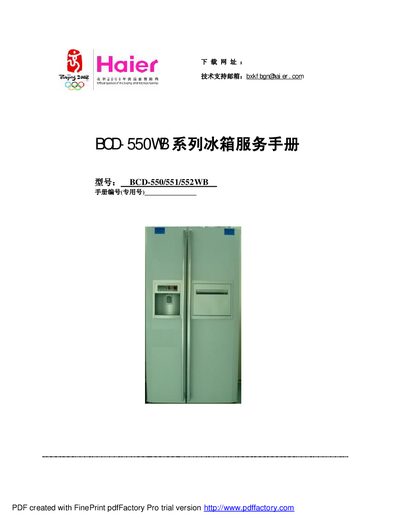

This document is the service manual for Haier BCD-550/551/552WB refrigerator. It mainly introduces the functions, features, appearance, internal structure, component structure, and usage of the refrigerator.
This service manual covers the Haier BCD-550/551/552WB series refrigerators. It explains product functions, model designation, exterior and interior structure, component names, and provides usage and improvement notes.
The document also contains detailed technical data such as capacities, power ratings, dimensions, and a comprehensive parts list for service and maintenance. This manual is written in Chinese.
| Total effective volume (L) | 541 |
|---|---|
| Freezer compartment volume (L) | 200 |
| Refrigerator compartment volume (L) | 341 |
| Rated voltage (V~) | 220 |
| Rated frequency (Hz) | 50 |
| Input power (W) | 200 |
| Energy consumption (kW·h/24h) | 1.17 |
| Cooling capacity (kg/24h) | 11 |
| Noise level (dB) | 48 |
| Refrigerant | R134a |
| Weight (kg) | 138 |
| Dimensions (mm) | 772×890×1770 |
The total effective volume is 541 L.
The refrigerators use R134a refrigerant.
The rated input power is 200 W and the energy consumption is 1.17 kWh per 24 h.
It carries a four‑star rating.
