This refrigerator has automatic ice making, ice temperature preservation area, sliding shelf, wind curtain technology, no frost and other features

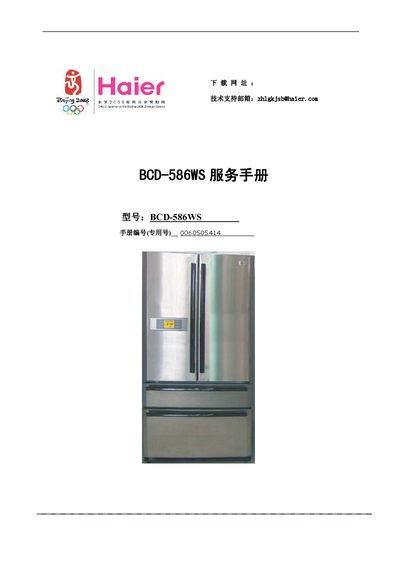

This service manual provides detailed product specifications, safety guidelines, and installation instructions for the Haier BCD-586WS refrigerator. It includes technical parameters such as capacity, power consumption, and dimensions, as well as a complete parts list for service and repair.
The document also outlines safety measures for electrical connection, handling, and maintenance, and shows internal structure diagrams to aid technicians in troubleshooting and component replacement. This manual is written in Chinese.
| Total Capacity (L) | 586 |
|---|---|
| Freezer Capacity (L) | 186 |
| Rated Voltage (V) | 220 |
| Rated Frequency (Hz) | 50 |
| Input Power (W) | 180 |
| Energy Consumption (kWh/24h) | 1.57 |
| Freezing Capacity (kg/24h) | 10 |
| Refrigerant | R134a 170 g |
| Weight (kg) | 135 |
| Dimensions (mm) | 770 × 910 × 1770 |
It operates on a 220 V, 50 Hz AC power supply.
Use a dedicated grounded 220 V/50 Hz outlet, avoid pulling the plug by the cord, keep the power cord intact, and ensure the unit is placed on a stable, non‑flammable surface.
The total effective storage volume is 586 L, with a freezer compartment of 186 L.
The unit uses R134a refrigerant, 170 g per unit.
