Shark®100-S/200-S is the most advanced WiFi power meter in the industry. It can measure power with billing accuracy and transmit data through modern communication media. The meter supports RS485, RJ45 Ethernet or IEEE 802.11 WiFi Ethernet, so the meter can be installed anywhere on site and communicate with the upper computer quickly and automatically. Shark®100-S/200-S can accept standard 5A or 1A CT inputs, and can be conveniently installed on various wall or device surfaces, and set up simply and quickly.

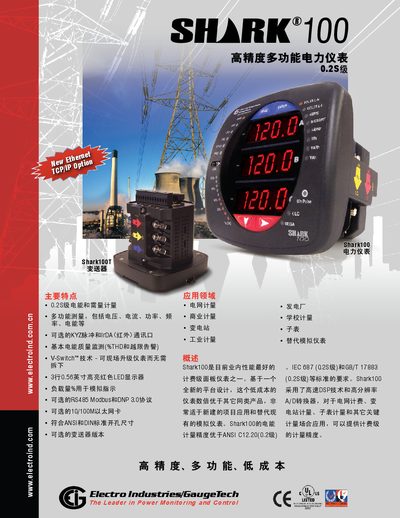

The Shark100 is a high‑accuracy, multi‑function electric instrument designed for power metering in grid, commercial, sub‑station and industrial applications. It offers 0.2S class energy and demand measurement, voltage, current, power, harmonic monitoring and optional communication ports.
The manual provides details on V‑Switch technology, selectable communication options (RS485 Modbus/DNP3.0, Ethernet, IrDA, KYZ pulse), installation dimensions for ANSI or DIN panels, electrical specifications, and environmental ratings. This manual is written in Chinese.
| Voltage input range | 90~265 Vac and 100~370 Vdc |
|---|---|
| Current input rating | 20 A |
| Measurement accuracy | 0.2S class (IEC 687) |
| Power consumption | max 0.36 VA per phase at 600 V input |
| Weight | 0.91 kg |
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Maximum humidity | 95 % RH (no condensation) |
| Isolation voltage | 2500 Vac |
It can be installed in a standard 102 mm round ANSI hole or a 92 mm IEC/DIN square hole, fitting both new and retrofit panels.
The device meets the 0.2S class (IEC 687) accuracy for energy and demand metering.
