TPD1038F is a high performance, high integrated intelligent power switch device produced by Toshiba Corporation. It has output end grounding, load short circuit protection, overheating protection, diagnostic output and other functions. It can be widely used in motors, relays, lighting and other fields.
The TPD1038F is a high‑side power MOSFET switch designed for motor, solenoid and lamp drive applications. It integrates a Bi‑CMOS control block and a vertical power MOSFET on a single chip, allowing direct drive from CMOS or TTL logic and providing built‑in protection and diagnostic functions.

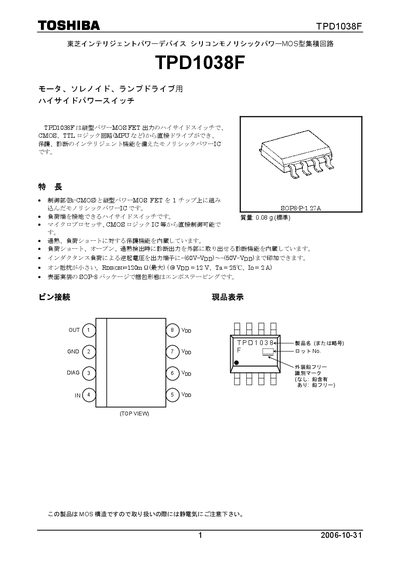

The document includes a block diagram, pin definitions, absolute maximum ratings, electrical characteristics, switching performance, test circuits, and package dimensions for the SOP8‑P‑1.27A surface‑mount package. This manual is written in Japanese.
| Drain‑Source Voltage (Vds) | 80 V |
|---|---|
| Package | SOP8‑P‑1.27A |
| Mass | 0.08 g (standard) |
| Continuous Power Dissipation | 1.1 W |
The device is rated for a maximum drain‑source voltage of 80 V.
It comes in an 8‑pin SOP8‑P‑1.27A surface‑mount package.
The MOSFET includes over‑heat and load‑short protection, as well as a diagnostic output that signals fault conditions.
