TPD2005F is a 8-channel 40V high-side power MOS switch IC produced by Toshiba. It has the advantages of high voltage resistance, small on-resistance, and low power consumption. It is suitable for high voltage, large current and high frequency driving occasions.
The TPD2005F is an 8‑channel high‑side switch array that integrates power MOSFETs and a charge‑pump. It can be driven directly from logic circuits and includes over‑current and over‑temperature protection.

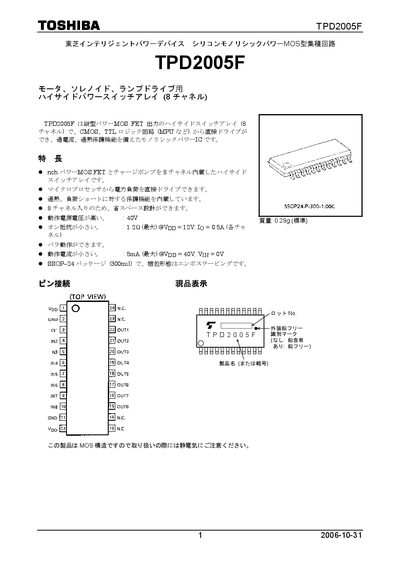

The document contains a block diagram, pin‑out table, timing charts, truth table, absolute maximum ratings, thermal and electrical characteristics, switching‑time data, and package dimensions for the SSOP24‑P‑300‑1.00C package. This manual is written in Japanese.
| Supply voltage (Vpp) max | 45 V |
|---|---|
| Drain‑Source voltage (VDS) max | 60 V |
| On‑resistance (RDS(on)) max | 1.20 Ω |
| Input pull‑down resistor | 100 kΩ |
| Logic supply (VDD) and IO | 12 V, 0.5 A |
The maximum supply voltage (Vpp) is 45 V.
The on‑resistance is specified as up to 1.20 Ω.
