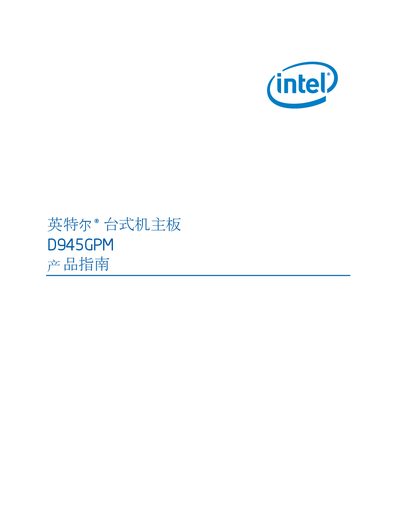

This document is the product guide of Intel desktop mainboard D945GPM, introducing the features and characteristics of the mainboard.
This product guide is intended for qualified technical personnel and covers the Intel D945GPM desktop board’s layout, component installation, BIOS updates, and regulatory information. It describes the board’s features, supported operating systems, and the environments in which it can be used.
The guide is organized into sections on board functions, installation and replacement of components, BIOS update procedures, Intel Matrix Storage Technology (RAID) configuration, Intel Quick Resume Technology driver installation, error messages and indicator signals, and compliance with safety and EMC standards. It also lists the contents of the packaging and provides reference tables for specifications and connectors.
| Form Factor | MicroATX (9.6" x 9.6") |
|---|---|
| Processor Socket | LGA775 |
| Memory Slots | Four 240‑pin DDR2 DIMM slots, up to 4 GB, 667/533/440 MHz |
| Chipset | Intel 945G Express (GMCH 82945G, ICH7DH) |
| Graphics | Intel GMA 950 |
| Audio | Intel High Definition Audio with SigmaTel codec |
| LAN | Intel 82573L Gigabit Ethernet |
| SATA Ports | Four SATA 3.0 Gb/s ports |
| USB Ports | Up to eight USB 2.0 ports |
The board supports Microsoft Windows XP Media Center Edition 2005 Update Rollup 2.
It provides up to eight USB 2.0 ports, four on the rear panel and four via internal connectors.
The motherboard uses an LGA775 socket for Intel processors.
