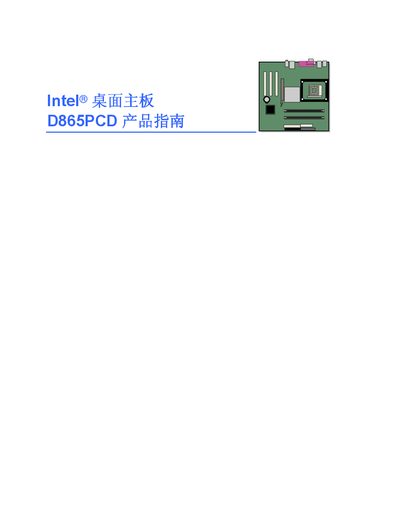

This document is a product guide for Intel® Desktop Board D865PCD, describing its features and characteristics.
This guide details the features and specifications of the Intel D865PCD desktop motherboard, including supported processors, memory configurations, chipset information, and peripheral interfaces. It is intended for qualified technical personnel who need to install, configure, and maintain the board.
The document also covers BIOS update procedures, BIOS setup menus, compliance with EMC and regulatory standards, and provides troubleshooting information such as error messages and indicator codes. This manual is written in Chinese.
| Form factor | MicroATX 9.6" x 9.6" |
|---|---|
| Supported processors | Intel Pentium 4 2.2 GHz+ (533/400 MHz bus) and Intel Celeron 2.0 GHz+ (400 MHz bus) |
| Memory slots | 2 × 184‑pin 2.5 V SDRAM DIMM sockets |
| Memory interface | Dual‑channel DDR SDRAM 333/266 MHz |
| Maximum system memory | 2 GB |
| Chipset | Intel 865P (MCH 82865P, I/O controller 82801EB, 4 Mbit firmware hub) |
| USB 2.0 ports | Up to 6 ports (4 rear, 2 internal) |
| IDE interfaces | 2 IDE ports supporting Ultra DMA‑33 and ATA‑66/100 |
It uses a MicroATX form factor measuring 9.6 inches by 9.6 inches.
The board supports Intel Pentium 4 processors with a 533/400 MHz bus (2.2 GHz or faster) and Intel Celeron processors with a 400 MHz bus (2.0 GHz or faster).
It can accommodate up to 2 GB of system memory using two 184‑pin DDR SDRAM DIMM slots.
The board provides up to six USB 2.0 ports—four on the rear panel and two internal connectors.
