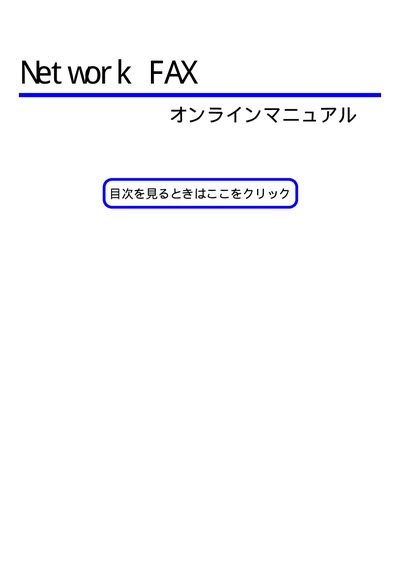

This document is an online manual for Net work FAX feature, explaining how to configure it on the computer (referred to as PC) when using FAX System (F). Please also refer to the separate user manual. This online manual is in PDF format and requires Adobe Acrobat Reader 4.05J or later to view. The CD-ROM provided with Net work FAX contains the installer for Adobe Acrobat Reader. Please adhere to Adobe's terms of use for handling Adobe Acrobat Reader.
The manual provides step‑by‑step instructions for installing the Network FAX driver, Address Book, and Scanner File Utility from the supplied CD‑ROM. It also describes the required operating system versions and network interface settings.
Additional sections cover sending and receiving fax over LAN, using the address book for group mailing, and detailed specifications of the Network FAX functions such as resolution, file formats, and automatic redial. This manual is written in Japanese.
| Network Interface | 10BASE‑T / 100BASE‑TX |
|---|---|
| Fine Resolution | 200 × 200 dpi |
| Ultra‑Fine Resolution | 400 × 400 dpi |
| Maximum Send Size | 5 pages (standard size only) |
| Automatic Redial | Follows fax‑machine control |
| Time‑Scheduled Sending | Up to 24 h, 1‑minute increments |
| Simultaneous Output | Enabled |
| Send Image Format | PF or multi‑page TIFF |
| Receive Image Format | PF or multi‑page TIFF |
| Receive Notification | Email (up to 5 addresses) |
| Address Book Capacity | Up to 3000 entries |
Open the Address Book dialog, choose File → Save As, specify a file name and location, and click Save to export the entries.
Images are saved as PF files or multi‑page TIFF files using the Scanner File Utility.
