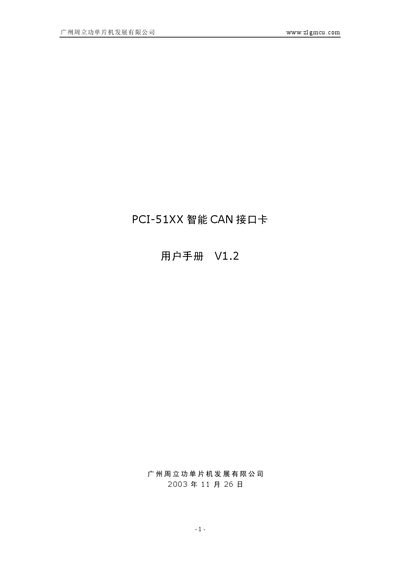

This document is the user manual of PCI-51XX Intelligent CAN Interface Card produced by Guangzhou ZLG MCU Development Co., Ltd. It introduces the features and characteristics of the product, hardware parameters, and device installation instructions.
The PCI-51XX is a high‑performance CAN bus interface card that plugs into a standard PCI slot, offering up to four CAN channels with optical isolation for reliable operation in harsh environments. It supports CAN 2.0B (PeliCAN) protocol and includes drivers for Windows 98/Me, 2000 and XP.
The manual covers the card’s features, detailed hardware parameters, step‑by‑step hardware and software installation, driver configuration, interface function library, test tools, common troubleshooting questions, and warranty information. Appendices provide a brief company overview, CAN 2.0B frame format, and SJA1000 baud‑rate tables. This manual is written in Chinese.
| On‑board memory | 8 KB Dual Port RAM |
|---|---|
| CAN controller | PHILIPS SJA1000T |
| CAN transceiver | PHILIPS PCA82C250 |
| CAN communication rate | Programmable 5 Kbit/s – 1 Mbit/s |
| Connector | DB9 socket, DeviceNET and CANopen compatible |
| Supported CAN protocol | CAN 2.0B (PeliCAN), compatible with CAN 2.0A |
| Maximum frame throughput | 4000 frames/s per channel |
| Optical isolation voltage rating | 1000 V DC |
| Operating temperature | 0 °C – 70 °C |
| Physical dimensions | Standard PCI short card, 130 mm × 90 mm |
| Number of CAN channels | Up to 4 channels (CZ1‑CZ4) |
Power off the PC, open the case, insert the PCI-51XX card into an empty PCI slot, secure it with screws, close the case and restart the computer.
The card works with Windows 98/Me, Windows 2000 and Windows XP.
The CAN communication rate can be set from 5 Kbit/s up to 1 Mbit/s.
The PCI-51XX card provides up to four CAN channels, each accessed via a DB9 connector (CZ1‑CZ4).
