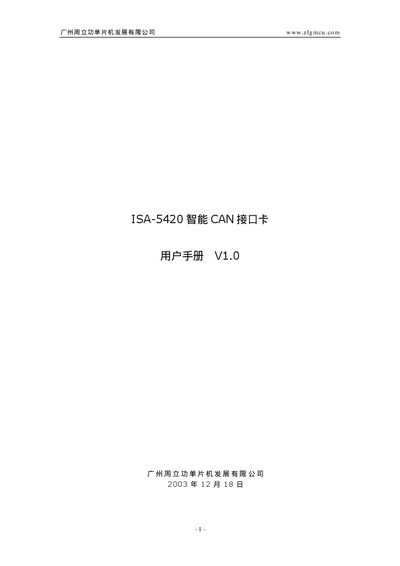

This document is the user manual for the ISA-5420 Intelligent CAN Interface Card from Guangzhou ZLG MCU Development Co., Ltd. It introduces the features and characteristics of the product, hardware parameters, device installation, interface functions, and testing tools.
This manual provides a complete guide for the ZLG ISA-5420 CAN interface card, covering hardware description, driver installation, and software usage for DOS and Windows 98/Me environments. It includes wiring diagrams, DB9 connector pinouts, and configuration steps for DeviceNet and CANopen networks.
The document also details the card’s technical specifications, such as the dual‑port RAM, CAN controller and transceiver chips, supported baud rates, and physical dimensions, helping users set up and troubleshoot the device in industrial automation applications. This manual is written in Chinese.
| Memory | 8KB Dual Port RAM |
|---|---|
| CAN Controller | PHILIPS SJA1000T |
| CAN Transceiver | PHILIPS PCA82C250 |
| Supported CAN Protocol | CAN 2.0B |
| Network Standards | DeviceNet, CANopen |
| Baud Rate Range | 5 Kbit/s – 1 Mbit/s |
| Dimensions | 158 mm × 98 mm |
The card works with DOS and Windows 98/Me.
The card is built around the PHILIPS SJA1000T CAN controller.
The card supports DeviceNet and CANopen protocols.
