The 2SC5064 is a small-signal NPN transistor produced by Toshiba. Its feature is its excellent noise characteristics, with an insertion power gain of 8.5~12dB and a noise figure of 1.1~2dB.

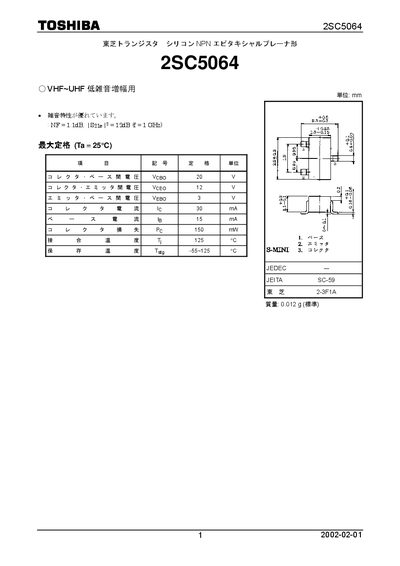

The 2SC5064 is a silicon NPN epitaxial planar transistor designed for VHF/UHF low‑noise amplification. The sheet lists its key electrical limits, noise performance, and high‑frequency behavior.
The document includes detailed tables of collector‑base voltage, collector‑emitter voltage, collector current, transition frequency, noise figure, power dissipation, operating temperature range, and S‑parameter measurements up to 2 GHz. This manual is written in Japanese.
| Collector‑Base Voltage (VcBO) | 20 V |
|---|---|
| Collector‑Emitter Voltage (VcEO) | 12 V |
| Emitter‑Base Voltage (VEBO) | 3 V |
| Operating Temperature Range | -55 °C to 125 °C |
| Package Mass | 0.012 g |
The maximum collector‑base voltage is 20 V.
It is rated for operation from –55 °C to 125 °C.
