IMAGENICS HDIP-100 is a device that converts analog video signals into IP streams. It supports 1080i/720p/480p/480i resolution video input and 2-channel audio input, and can be transmitted over a LAN network.

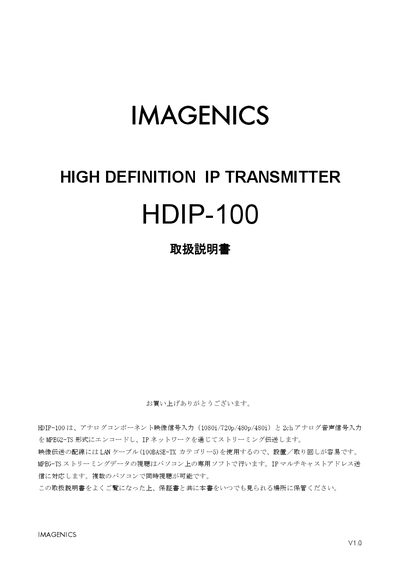

The IMAGENICS HDIP-100 is a high‑definition IP transmitter that converts analog component video (1080i/720p/480p/480i) and 2‑channel analog audio into MPEG‑TS streams for delivery over a single 100BASE‑TX LAN cable. It supports unicast and multicast IP transmission, allowing multiple computers to view the stream simultaneously.
The document covers safety precautions, first‑time setup (IP address, port numbers, bitrate, security software, routing), menu navigation, front and rear panel descriptions, operation modes, software installation, remote‑control configuration, and a full list of technical specifications. It also includes recommended PC specifications for playback and troubleshooting information. This manual is written in Japanese.
| VideoMode options | 1080i, 720p, 480p, 480i |
|---|---|
| VideoRate SD | 6 Mbps |
| VideoRate HD | 18 Mbps |
| AudioRate | 384 Kbps |
| CastMode | Unicast (default) |
| Unicast address | 192.168.0.193 |
| Multicast address | 239.1.2.3 |
| Port number (data) | 51310 |
| Device IP address | 192.168.0.195 |
| Subnet mask | 255.255.255.0 |
The device ships with the IP address 192.168.0.195, which can be changed in the menu under the IP address settings.
Use a 100BASE‑TX Category 5 LAN cable for video transmission.
Yes, the transmitter supports IP multicast, allowing several PCs to watch the stream simultaneously.
The default HD video bitrate is set to 18 Mbps.
