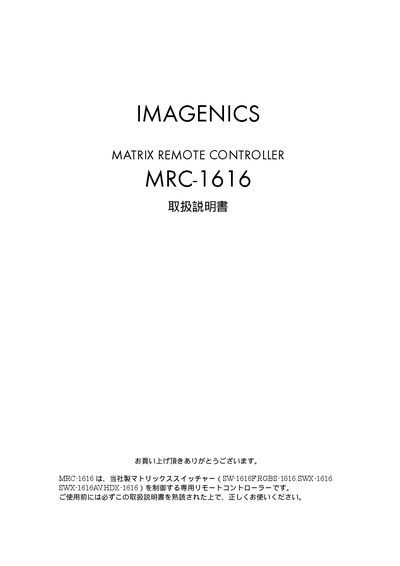

This manual introduces the features, usage and precautions of the IMAGENICS MATRIX REMOTE CONTROLLER MRC-1616.
This manual explains safe handling, installation, and operation of the IMAGENICS MRC-1616 remote controller, which is used to control IMAGENICS matrix switchers. It includes safety warnings, a checklist of supplied items, and a description of the controller’s features such as cross‑point selection and memory pattern recall.
The guide details the operation panel functions, connector pin assignments, DIP‑switch configuration for communication speed, rack‑mount installation steps, and the main technical specifications. It also provides troubleshooting notes for communication errors and instructions for cascading multiple controllers. This manual is written in Japanese.
