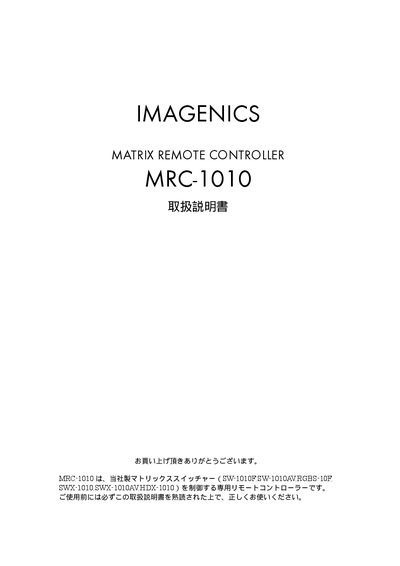

This is the abstract of the IMAGENICS MATRIX REMOTE CONTROLLER MRC-1010 manual. This product is a remote controller specifically for controlling SW-1010F,SW-1010AV,RGBS-10F, SWX-1010,SWX-1010AV,HDX-1010.
The MRC-1010 is a dedicated remote controller for IMAGENICS matrix switchers, allowing selection of cross‑points, memory pattern recall, and cascade control of up to ten units. It features an operation panel with cross‑point switches, memory selection switches, and a key‑lock for disabling operation.
The manual provides safety guidelines, a description of the operation and connector panels, wiring diagrams, DIP‑switch configuration, rack‑mount installation steps, and the main technical specifications of the controller. This manual is written in Japanese.
| Switcher control connector | D‑sub 9‑pin female |
|---|---|
| Signal level (switcher control) | RS‑422A compliant |
| External control connector | D‑sub 9‑pin female, RS‑422A |
| Compatible switcher models | 8W‑1010E, SW‑1010AVRGBS‑10E, SWX‑1010, 8WX‑1010AVHDX‑1010 |
| Operating temperature range | 0 °C ~ 40 °C |
| Storage temperature range | -20 °C ~ 70 °C |
| Dimensions (W×H×D) | 270 mm × 211 mm × 63.5 mm |
| Weight | ≈ 2 kg |
| Power supply | 100 V AC, 50 Hz/60 Hz |
| Power consumption | < 7 W |
The DIP switch allows 2400 bps, 4800 bps, 9600 bps, or 19200 bps.
Press and hold the key‑lock switch for more than one second; the lock lamp will turn on.
