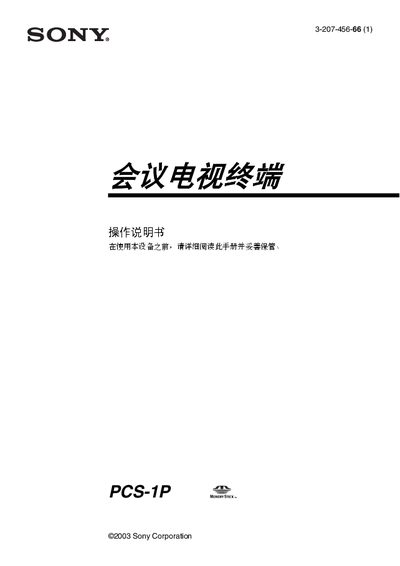

This document is the user manual of Sony conference television terminal PCS-1P, which introduces the features and characteristics of the product, including system components, system configuration, system connection, system preparation, using menu, system administrator registration and settings, daily video conference and other contents.
The Sony PCS-1P meeting television terminal enables video and audio communication over LAN or ISDN, supporting ITU‑T standards and optional data‑conference modules. It can be installed on a TV or projector and includes a camera, processor, and optional accessories such as dual‑stream modules and SIP software.
The manual guides users through installation, system‑administrator registration, daily conference operation, and advanced features like encrypted LAN meetings, multi‑point conferences, whiteboard integration, and SIP‑based calls. Appendices detail component interfaces, fault handling, specifications, and a glossary of terms. This manual is written in Chinese.
| Maximum LAN bandwidth | 1920 Kbps |
|---|---|
| Supported video compression formats | Interlaced SIF, H.264, MPEG4, H.263+, H.263, H.261 |
| Supported audio compression formats | MPEG4 Audio, G.722.1, G.722, G.729, G.728, G.723.1, G.711 |
| Dual‑monitor support | Can connect two monitors |
Use the LAN system configuration section to set up network parameters and connect the terminal to the LAN.
Optional modules include PCS‑B384 ISDN, PCS‑B768 ISDN, PCS‑DSB1 dual‑stream, PCS‑320M1 H.320 MCU, PCS‑323M1 H.323 MCU, and SIP software.
Yes, encrypted LAN conferences are supported when the terminal is connected via LAN and a password is set.
The terminal can be connected to two monitors simultaneously.
