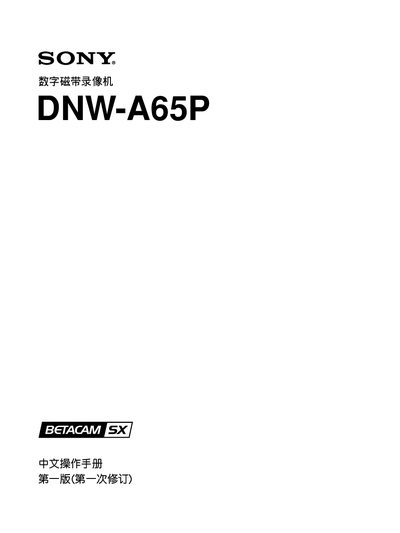

This manual describes the functions and operations of the DNW-A65P Digital Tape Recorder (hereinafter referred to as this unit), and provides system connection examples and maintenance and inspection methods.
This manual describes the DNW-A65P, a box‑type digital VCR based on the Betacam SX format. It covers basic functions, menu‑driven settings, and how to connect external equipment such as BVE editing controllers and BVR video processors.
The document also lists performance data, supported input/output signals, and optional accessories, and includes safety warnings and installation guidelines for rack mounting.
| Drum speed | 7.5 rps |
|---|---|
| Video format | Betacam SX |
| Compression ratio | ≈10:1 |
| Digital playback heads | 8 |
| Supported tape playback formats | Betacam, Betacam SP, Betacam SX |
| SDTI output | Yes |
| Component video output | Yes |
| Composite video output | Yes |
| AES/EBU audio output | Yes |
It can play Betacam, Betacam SP, and Betacam SX tapes.
The unit has eight digital playback heads.
The drum rotates at 7.5 revolutions per second.
