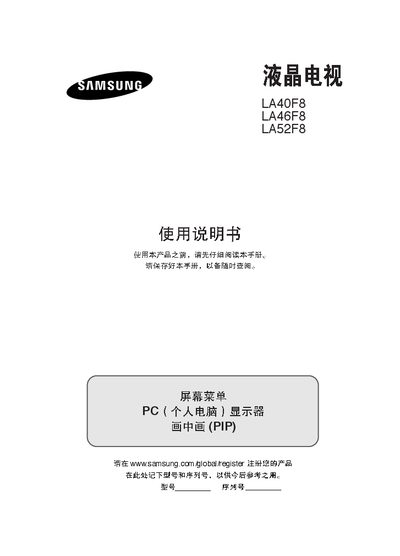

This document introduces three products: LA40F8, LA46F8, and LA52F8. These products are LCD TVs with 2 screen burn features, supporting 4:3 DVD and PC brightness contrast adjustment. The document also provides information on product specifications and connection methods.
This manual provides step‑by‑step instructions for installing and operating Samsung LA40F8, LA46F8, and LA52F8 LCD televisions. It includes safety guidelines, wiring diagrams, remote‑control functions, and detailed information on picture and audio settings.
The document also lists the technical specifications for each model, such as screen resolution, power consumption, dimensions, and environmental operating ranges, helping users configure the TV for optimal performance. This manual is written in Chinese.
| Screen resolution | 1920 x 1080 @ 60 Hz |
|---|---|
| Dimensions (W×H×D) – LA40F8 | 1366 mm × 120 mm × 780 mm |
| Brightness | 400 cd/m² |
| Operating temperature range | -20 °C to 45 °C |
All three models have a resolution of 1920 × 1080 pixels at 60 Hz.
The LA40F8 measures 1366 mm wide, 120 mm high, and 780 mm deep.
The display brightness is rated at 400 cd/m².
