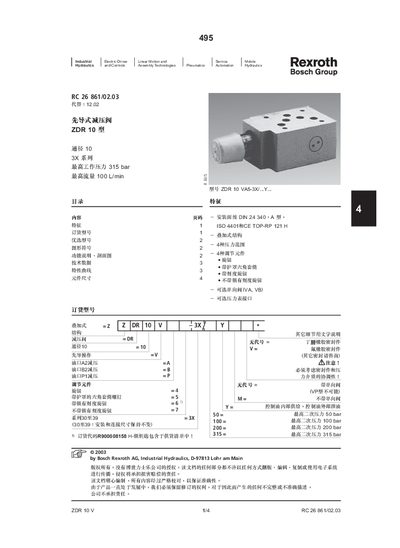

Bosch Rexroth ZDR 10 Decompression Valve Manual
The ZDR 10 is a lead‑type decompression valve used to reduce pressure in hydraulic circuits. It is available in several variants (VA, VB, VP) and can be equipped with optional pressure‑gauge interfaces.
The manual contains installation drawings, adjustment instructions, technical data, ordering codes, and dimensional drawings. It also lists the permissible pressure media, temperature ranges, and safety notes for proper use. This manual is written in Chinese.
Rexroth ZDR 10 specifications
| Maximum working pressure | 315 bar |
|---|---|
| Maximum flow | 100 L/min |
| Set pressure range | 50, 100, 200, 315 bar |
| Back pressure limit | 160 bar |
| Pressure medium | Mineral oil (HL, HLP) |
| Operating temperature range | -30 °C to +80 °C |
| Viscosity range | 10 – 800 mm²/s |
| Weight (VA/VP type) | ≈23 kg |
| Weight (VB type) | ≈27 kg |
All Rexroth ZDR 10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the maximum working pressure of the ZDR 10 valve?
The ZDR 10 valve can operate up to a maximum pressure of 315 bar.
Which pressure media are compatible with the ZDR 10?
The valve is designed for mineral oil (HL, HLP) and other approved hydraulic fluids.
What is the maximum working pressure of the ZDR 10 D valve?
The valve can operate up to 210 bar of pressure.
What is the maximum flow rate for the ZDR 10 D?
The maximum flow rate is 80 L/min.
