This document introduces various standard products for household appliances, including products certified to UL/CSA standards and products certified to VDE and TV-3 standards. Among them, HC relays are stable in performance and of excellent quality, and can be widely used in FA equipment, automation equipment, and other fields.

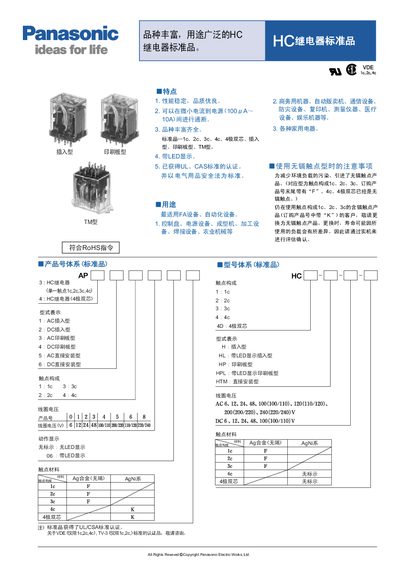

The HC relay series from Panasonic provides a range of 4‑pole double‑contact relays for factory automation, industrial machines and a variety of equipment. Models are offered in insertion, printed‑circuit and direct‑mount (TM) types, with optional LED indication and cadmium‑free contact options.
The document lists electrical performance, mechanical dimensions, coil voltage ranges, contact materials, certification (UL/CSA, RoHS) and installation notes such as torque values and terminal arrangements. It also includes ordering information and reference data for different contact configurations. This manual is written in Chinese.
| Coil voltage range | 100 mA – 10 A |
|---|---|
| Contact material | Ag alloy (cadmium‑free) / AgNi type |
| LED display | Optional |
| Certifications | UL, CSA, RoHS compliant |
The HC relay series is certified to UL and CSA standards and complies with the RoHS directive.
The relays use either cadmium‑free Ag alloy contacts or AgNi type contacts.
Yes, certain models include an optional LED display.
The relays operate with coil currents from 100 mA up to 10 A.
