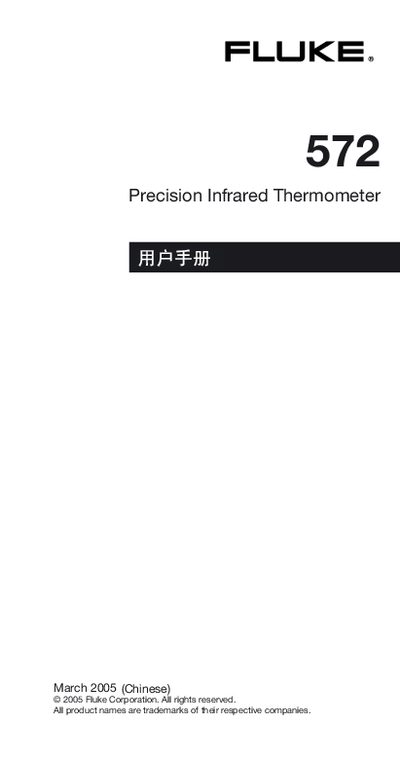

This document introduces the Fluke 572 Precision Infrared Thermometer, which is used for non-contact temperature measurement. The thermometer determines the surface temperature of objects by measuring the infrared energy radiated from the surface.
The Fluke 572 is a non‑contact infrared thermometer designed for quick surface temperature measurements. It uses the infrared energy emitted by an object to calculate its temperature without physical contact.
This manual covers safety warnings, laser precautions, device functions, measurement methods, installation, fault diagnosis, technical specifications, and warranty details, helping users operate and maintain the instrument safely and accurately. This manual is written in Chinese.
| Temperature range | -30 °C to 900 °C |
|---|---|
| Resolution | 0.1 °C |
| Accuracy (25 °C) | ±0.75 % |
| Response time | 230 ms |
| Hot‑spot response time | 85 ms |
| Optical resolution | 8–14 µm |
| Field of view (FOV) | 60:1 (at 1.15 m, spot size 19 mm) |
| Power requirement | 3 V |
| Battery life | ≈13 hours (50 % emissivity) |
| Emissivity range | 0.10–0.95 |
| Ambient temperature range | -20 °C to 50 °C |
The device is covered by a one‑year warranty from the date of purchase.
The battery provides about 13 hours of operation when the emissivity is set to 50 %.
It operates from a 3 V power source.
