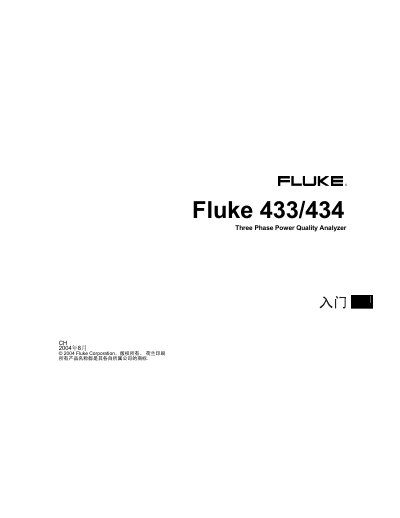

This QuickStart Guide introduces the Fluke 433/434 three‑phase power quality analyzer, covering safety precautions, battery charging, and how to connect the instrument to three‑phase or single‑phase systems. It also explains the main menu structure, measurement modes, and screen functions.
Key sections include battery preparation, input connections, auxiliary functions, measurement mode overview, power‑quality monitoring, screen symbols, and memory usage. The guide helps users quickly get the analyzer ready for accurate power‑quality measurements. This manual is written in Chinese.
| Maximum input voltage (Class III) | 1000 V |
|---|---|
| Maximum input voltage (Class IV) | 600 V |
| Battery type | NiMH rechargeable |
| Battery charger model | BC430 |
| Battery charger voltage rating | 230 V |
Charge the built‑in NiMH battery for 4 hours with the supplied BC430 charger while the analyzer is turned off.
Read the safety instructions, use only insulated probes and approved accessories, avoid explosive atmospheres, and inspect the instrument and cables for damage before each use.
