CASTGLOSS HGW/RP51/WG65(BP) is a high-gloss label paper with excellent tensile strength and weather resistance.
The CASTGLOSS HGW/RP51/WG65(BP) is a high‑gloss label paper designed for multi‑color tag applications. It features a white, transparent gloss base with a permanent acrylic adhesive (RP51) that adheres well to common non‑polar surfaces and offers good processing performance.

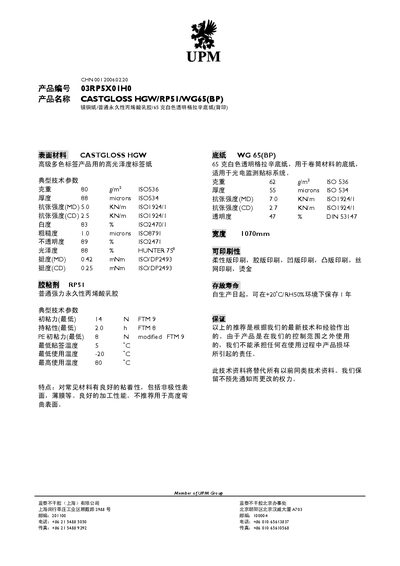

Key specifications include a weight of 80 g/m², thickness of 88 µm, tensile strengths of 5.0 kN/m (MD) and 2.5 kN/m (CD), gloss of 88 %, and a usable temperature range from –20 °C to 80 °C. The base paper WG65(BP) provides a 62 g/m² weight, 55 µm thickness, and is suitable for various printing methods such as flexographic, offset, gravure, letterpress and screen printing. This manual is written in Chinese.
| Weight | 80 g/m² |
|---|---|
| Thickness | 88 µm |
| Tensile strength (MD) | 5.0 kN/m |
| Tensile strength (CD) | 2.5 kN/m |
| Whiteness | 83 % |
| Roughness | 1.0 µm |
| Opacity | 89 % |
| Gloss | 88 % |
| Stiffness (MD) | 0.42 mNm |
| Stiffness (CD) | 0.25 mNm |
| Initial tack (minimum) | 14 FTM |
| Holding power (minimum) | 2.0 FTM |
| Minimum application temperature | 5 °C |
| Minimum use temperature | -20 °C |
| Maximum use temperature | 80 °C |
| Base paper weight | 62 g/m² |
| Base paper thickness | 55 µm |
| Base paper tensile strength (MD) | 7.0 kN/m |
| Base paper tensile strength (CD) | 2.7 kN/m |
| Transparency | 47 % |
| Width | 1070 mm |
| Printability | Flexographic, offset, gravure, letterpress, screen printing |
| Storage life | Up to 1 year at +20 °C / 50 % RH |
The RP51 adhesive can be applied at a minimum temperature of 5 °C.
The paper weighs 80 g/m² and has a thickness of 88 µm.
It is compatible with flexographic, offset, gravure, letterpress and screen printing.
