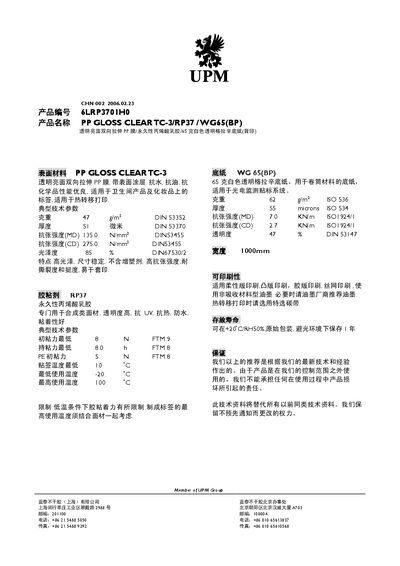

The data sheet is about the technical parameters of product 6LRP3701H0, including surface material, adhesive, backing paper, etc.
The PP GLOSS CLEAR TC-3/RP37 film is a transparent, biaxially‑stretched polypropylene material designed for high‑gloss printing applications. It offers excellent water, oil and chemical resistance, UV and heat stability, and is suitable for flexographic, offset and gravure printing processes.
Key technical parameters include a basis weight of 47 g/m², thickness of 51 µm, tensile strengths of 135 N/mm (MD) and 275 N/mm (CD), and a gloss level of 85 %. The film can be used from –20 °C up to 100 °C and is supplied with an RP37 adhesive layer that provides good initial and peel adhesion. This manual is written in Japanese.
| Basis weight (TC-3) | 47 g/m² |
|---|---|
| Thickness (TC-3) | 51 µm |
| Tensile strength MD (TC-3) | 135 N/mm |
| Tensile strength CD (TC-3) | 275 N/mm |
| Gloss (TC-3) | 85 % |
| Minimum use temperature | -20 °C |
| Maximum use temperature | 100 °C |
| Basis weight (WG65(BP)) | 62 g/m² |
| Thickness (WG65(BP)) | 55 µm |
| Transparency (WG65(BP)) | 47 % |
The film has a basis weight of 47 g/m² and a thickness of 51 µm.
Tensile strength is 135 N/mm in the machine direction (MD) and 275 N/mm in the cross direction (CD).
The film can be used from –20 °C up to 100 °C.
The gloss level is 85 %.
