RAFLACOAT/RH01/WG65S is a multi-purpose label paper produced by Blue Tai Adhesive (Shanghai) Co., Ltd., which is specially used for high-quality multi-color labels that require fine printing.
RAFLACOAT RH01 WG65S is a multi‑purpose label paper designed for high‑quality, fine‑print, multi‑color labeling. It is suitable for flexographic, offset, letterpress, gravure, screen printing and hot‑stamping applications, and can be used in optical monitoring labeling systems.

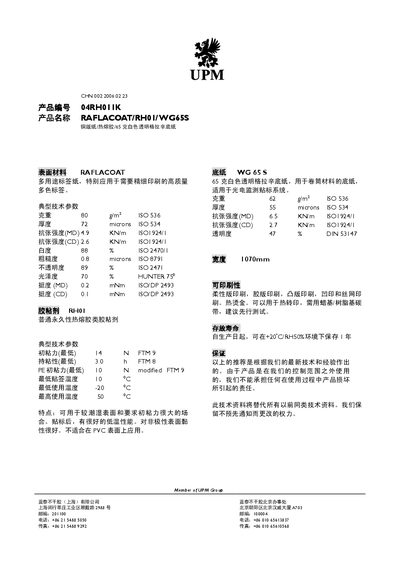

The leaflet lists key technical parameters such as weight, thickness, tensile strength, whiteness, roughness, opacity, gloss, stiffness, adhesive type, peel force, temperature limits, width and transparency, as well as storage recommendations and warranty information. This manual is written in Chinese.
| Weight (RAFLACOAT) | 80 g/m² |
|---|---|
| Thickness (RAFLACOAT) | 72 µm |
| Tensile Strength MD | 4.9 kN/m |
| Tensile Strength CD | 2.6 kN/m |
| Gloss | 70 % |
| Adhesive Type | RHo0l ordinary permanent hot‑melt |
| Initial Peel Force (minimum) | 14 N |
| Minimum Application Temperature | 10 °C |
| Operating Temperature Range | -20 °C to 50 °C |
| Width | 1070 mm |
It should be stored at +20 °C and 50 % relative humidity from the day of production.
The label can be applied at temperatures as low as 10 °C.
The label uses an ordinary permanent hot‑melt adhesive designated RHo0l.
