FG-52 is a function signal generator with a frequency range of 0.05Hz~5MHz. It has many functions and high stability, which is very suitable for use in the laboratories of schools and electronic companies

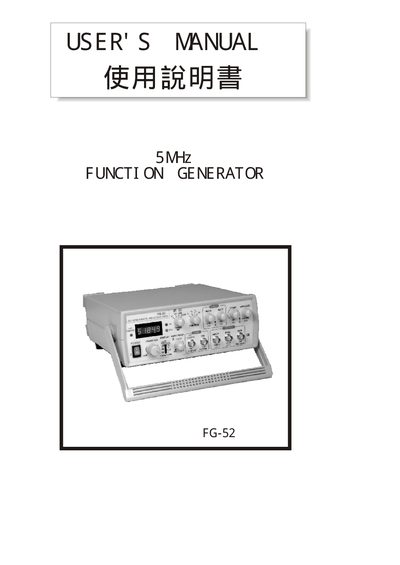

This manual covers safety notices, general information, specifications, front‑panel description, and detailed operation instructions for the FG-52 function generator. It includes sections on normal generation, sweep mode, pulse‑wave mode, and frequency‑counter mode.
The document explains how to power the unit, set frequency, amplitude, offset, and use the various knobs and switches to obtain the desired waveforms. It also lists electrical ratings, dimensions, and connector assignments.
| Frequency range (normal mode) | 0.05 Hz ~ 5 MHz |
|---|---|
| Frequency range (extended mode) | 0.2 Hz ~ 60 MHz |
| DC offset range | +10 V to -10 V |
| Power supply | 115 V AC 600 mA, 230 V AC 300 mA |
| Dimensions | 275 mm × 90 mm × 300 mm |
Push the power switch on; the five‑digit LED display will light.
In normal mode the unit covers 0.05 Hz to 5 MHz; in extended mode it can measure up to 60 MHz.
