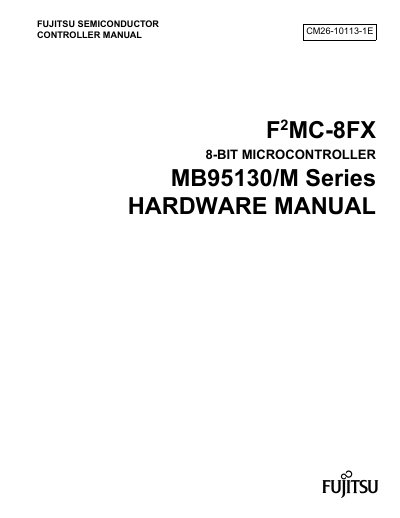

This document is the Fujitsu Semiconductor Controller Manual, which describes the hardware manual for the F2MC-8FX 8-bit microcontroller MB95130/M series. This series of products can be used for a wide range of applications, including consumer products and industrial equipment.
This manual provides engineers with detailed information on the Fujitsu MB95130/M series 8-bit microcontroller. It describes the device's functions, features, pin assignments, package dimensions, and registers needed for hardware design and development.
The document includes sections on handling precautions, memory organization, CPU registers, clock controller configuration, interrupt handling, I/O ports, timers, and watchdog functions, as well as sample programs and reference links for further support.
