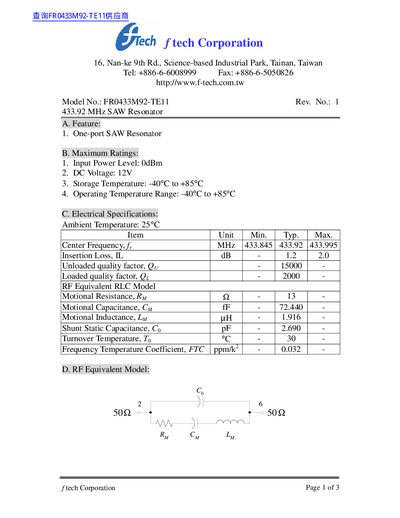

f tech Corporation FR0433M92-TE11 433.92 MHz SAW Resonator is a one-port SAW Resonator with a maximum input power level of 0dBm and operating temperature range of -40°C to +85°C.
The FR0433M92-TE11 is a 433.92 MHz one‑port SAW resonator designed for RF applications. It offers a typical insertion loss of 2.0 dB and high quality factors, with a maximum input power level of 0 dBm and a 12 V DC supply.
Key electrical parameters include a center frequency of 433.92 MHz, unloaded Q of 15 000, loaded Q of 2 000, and a motional resistance of 13 Ω. The device is packaged in a 3‑pin configuration (Input, Output, Ground) with dimensions of 29.5 mm × 1 mm × 0.45 mm and operates from –40 °C to +85 °C.
| Center Frequency (MHz) | 433.92 |
|---|---|
| Insertion Loss (dB) | 2.0 |
| Unloaded Quality Factor (Qu) | 15000 |
| Loaded Quality Factor (QL) | 2000 |
| Motional Resistance (Ω) | 13 |
| Motional Capacitance (fF) | 72.440 |
| Motional Inductance (µH) | 1.916 |
| Shunt Static Capacitance (pF) | 2.690 |
| Turnover Temperature (°C) | 30 |
| Frequency Temperature Coefficient (ppm/°C) | 0.032 |
| Input Power Level | 0 dBm |
| DC Voltage | 12 V |
| Storage Temperature Range | -40°C to +85°C |
| Operating Temperature Range | -40°C to +85°C |
The typical center frequency is 433.92 MHz.
It has three pins: Pin 1 is Input, Pin 2 is Output, and Pin 3 is Ground.
The device tolerates an input power level of 0 dBm and a DC voltage of 12 V.
It operates from –40 °C to +85 °C.
