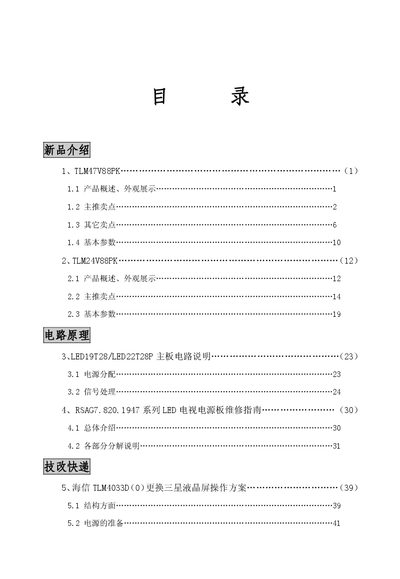

This document introduces the appearance and main selling points of the new product TLM47V88PK from Hisense, as well as other selling points and basic parameters. It also includes the introduction and basic parameters of TLM24V88PK, LED19T28/LED22T28P mainboard circuit description, RSAG7.820.1947 series LED TV power board repair guide, and Hisense TLM4033D replacement scheme for Samsung LCD screen.
This manual introduces the Hisense TLM47V88PK television, detailing its design, key features such as the breathing light, rotating base, and touch-sensitive buttons. It also explains the high‑definition display technology, audio system, and connectivity options.
Technical sections cover the circuit diagrams, backlight control, video processing, and step‑by‑step repair procedures, including screen replacement and power‑board troubleshooting. This manual is written in Chinese.
| Refresh rate processing | 240 Hz |
|---|---|
| Backlight technology | Energy‑saving light‑sensing variable‑frequency backlight system |
| Audio system | Professional 2.1‑channel audio restoration system |
| Interface | TUSB high‑speed dual‑stream media interface |
It supports a 240 Hz processing rate for smooth motion display.
It uses an energy‑saving light‑sensing variable‑frequency backlight system.
The TV includes a professional 2.1‑channel audio restoration system.
