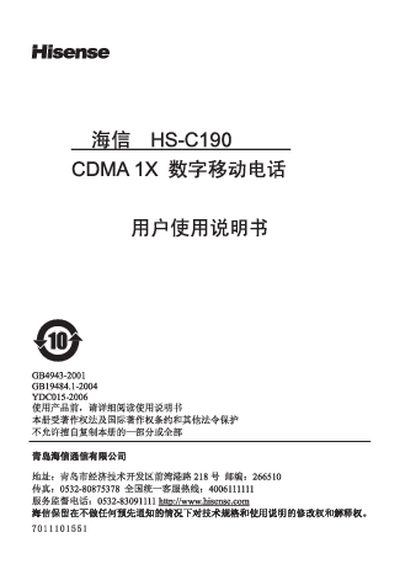

The HS-C190 is a CDMA 1X digital mobile phone produced by Hisense. The manual begins with safety warnings, regulatory references (GB4943‑2001, GB19484.1‑2004, etc.) and advises users to read the guide before operating the device. Important cautions include avoiding use while driving, on aircraft, near flammable substances, and maintaining a safe distance from medical equipment such as pacemakers and hearing aids.
The guide then describes the phone’s hardware layout, menu structure, and basic functions. It explains how to navigate the main menu, use the directional and function keys, and access features like call logs, messages, and settings. Detailed procedures are provided for installing the UIM card and battery, charging the 800 mAh battery, and understanding battery performance (≈200 min talk time, ≈160 h standby). This manual is written in Chinese.
| Battery capacity | 800 mAh |
|---|---|
| Talk time (approx.) | 200 minutes |
| Standby time (approx.) | 160 hours |
| Network | CDMA 1X 800 MHz |
Insert the UIM card with the metal side facing inward, following the arrow direction shown, then replace the back cover and battery.
Connect the charger to a 100‑220 V outlet, plug the charging cable into the phone’s charging port, and wait until the battery icon stops flashing.
The battery capacity is 800 mAh.
