This document describes the features and characteristics of the S-89430/89431 series of micro analog CMOS operational amplifiers, including low voltage operation, low power consumption, wide input-output voltage range, etc. This series is suitable for battery-powered small mobile devices.
The S-89430/89431 series are rail‑to‑rail CMOS arithmetic amplifiers designed for low‑voltage, low‑power applications such as portable devices, cameras and imaging equipment. The series includes single‑channel (S‑89430A/89431A) and dual‑channel (S‑89430B/89431B) versions, each offering rail‑to‑rail input and output ranges.

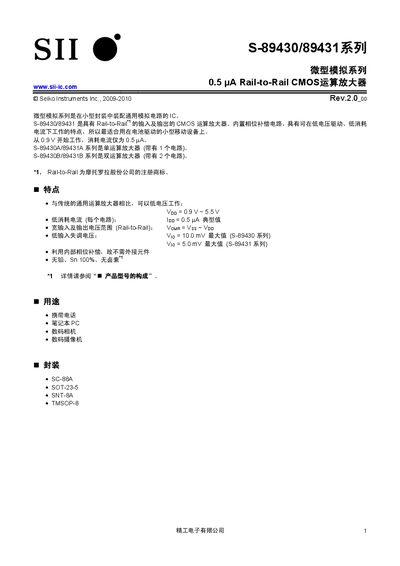

The datasheet provides detailed electrical characteristics, pin configurations for SC‑88A, SOT‑23‑5, SNT‑8A and TMSOP‑8 packages, and typical application information. Key specifications include a supply voltage range of 0.9 V to 5.5 V, quiescent current of 0.5 µA per channel, and input offset voltages of 10 mV (S‑89430) or 5 mV (S‑89431). This manual is written in Japanese.
| Supply voltage range (Vpp) | 0.9 V ~ 5.5 V |
|---|---|
| Quiescent current per channel (Iq) | 0.5 µA (typical) |
| Maximum input offset voltage (Vo) – S‑89430 series | 10.0 mV |
| Maximum input offset voltage (Vio) – S‑89431 series | 5.0 mV |
| Power dissipation (SC‑88A package) | 350 mW |
| Operating temperature range | -40 °C ~ +85 °C |
| Storage temperature range | -55 °C ~ +125 °C |
The devices operate from 0.9 V up to 5.5 V.
Typical quiescent current is 0.5 µA per channel.
The series is offered in SC‑88A, SOT‑23‑5, SNT‑8A, and TMSOP‑8 packages.
The maximum input offset voltage is 10 mV.
