SHD-30B-CT/PCI/FJ digital hybrid card is a digital hybrid card with PCI bus, which can achieve high impedance monitoring on E1/T1 line and obtain the call information and voice signal on the line.
The Sanhui SHD-30B-CT/PCI/FJ is a PCI‑bus digital relay monitoring card that captures call information and voice signals on E1/T1 lines. It supports multiple signaling standards, recording modes, and offers high‑impedance tap without affecting the original line.

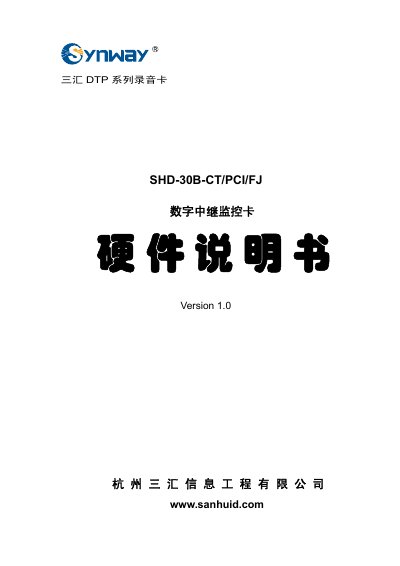

The manual provides a detailed overview of the card’s functions, performance characteristics, hardware layout, system requirements, installation steps, and full technical specifications, along with support contact information. This manual is written in Chinese.
| Dimensions | 310 × 115 mm (without mounting brackets) |
|---|---|
| Weight | ≈250 g |
| Operating Temperature | 0 °C – 55 °C |
| Power Consumption | ≤ 8 W |
| Input Impedance | ≥ 2400 Ω |
| Power Supply | +5 V DC, 600 mA |
Windows 2000, 2003, XP and Linux distributions such as RH7.2, RH9.0, AS4, FC4, and SUSE10.
The card consumes no more than 8 W.
It requires a +5 V DC supply with a current draw of up to 600 mA.
