The SHN-32A-CT/PCI IP voice card provides most of the services required for developing VoIP applications. It is mainly used in IP gateways, media servers/conference servers, soft switch systems, IP PBX systems, IP call center systems, IP application servers, IVR systems, large-capacity IAD (integrated access) devices, VolP solutions, and NGN network support devices.
The SanHui SHN-32A-CT/PCI IP voice card provides VoIP services such as SIP/H.323 signaling, audio encoding/decoding, and CT‑BUS interfacing. It supports up to 32 IP channels per card and can be installed in pairs for larger systems.

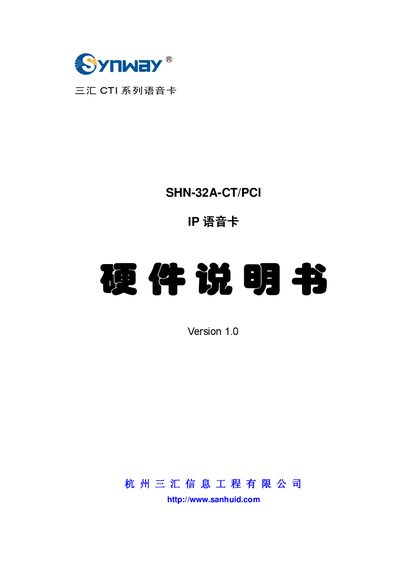

The manual includes functional descriptions, performance characteristics, block diagrams, software architecture, installation steps, system requirements, and a full list of technical parameters. It also provides contact information for technical and sales support. This manual is written in Chinese.
| Dimensions | 310×115 mm |
|---|---|
| Weight | ≈250 g |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | -20 °C – 85 °C |
| Maximum Power Consumption | ≤ 8 W |
| PCI Bus Standard | PCI 2.2 |
| IP Channels per Card | 32 |
| Supported Audio Codecs (hardware) | G.711 A‑Law, G.711 µ‑Law, IMA‑ADPCM |
| Supported IP Audio Formats | G.729, A‑Law, µ‑Law |
Each SHN-32A-CT/PCI card provides 32 IP channels, and up to two cards can be used in a single system.
The card supports Windows 2000, Windows 2003, and Windows XP.
The card’s maximum power consumption is 8 W or less.
The card measures 310 mm × 115 mm and weighs about 250 g.
