The HP ProLiant ML370 G5 server is a high-performance, two-socket server that offers a variety of features and options to meet the needs of businesses of all sizes. The ML370 G5 is powered by the latest Intel Xeon processors and supports up to 16GB of memory. It also features a variety of expansion slots, including nine PCI slots, seven PCI-Express x4 slots, and two PCI-X 64/133 MHz slots. The ML370 G5 also comes with two NC373i Gigabit Ethernet cards, which support TCP/IP offload and can be used for accelerated iSCSI.
The HP ProLiant ML370 G5 is a fifth‑generation server offering high‑performance Intel Pentium 4 dual‑core processors, up to 16 GB DDR2 memory, and flexible storage options with up to eight small‑form‑factor drives. Integrated components include a dual‑port NC373i Gigabit Ethernet controller, optional P400 or E200 RAID controllers, and iLO 2 remote management.

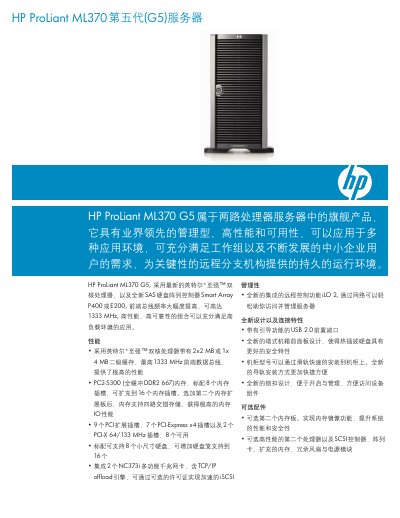

The server supports a wide range of operating systems such as Windows Server 2000/2003, Linux, UnixWare, and VMware, and complies with ACPI 1.0b, PCI 2.2, and RoHS standards. It is available in both tower (5U) and rack‑mount configurations with detailed power, thermal, and warranty information provided. This manual is written in Chinese.
| Processor | Intel Pentium 4 2.66 GHz dual‑core (5150) |
|---|---|
| Maximum Memory | 16 GB DDR2 (8 slots) |
| Memory Type | DDR2‑667 (PC2‑5300) |
| Drive Bays | Up to 8 small‑form‑factor hot‑swap drives |
| Integrated NIC | 2‑port NC373i Gigabit Ethernet |
| Power Input | 100‑240 VAC, 50‑60 Hz |
| Dimensions (Tower) | 21.92 × 44.45 × 67.31 cm (H × W × D) |
| Weight (Tower) | 30.84 kg |
Supported operating systems include Microsoft Windows Server 2000, Windows Server 2003, Linux, SCO UnixWare, OpenServer, and VMware.
The server can accommodate up to eight DDR2 memory modules for a maximum of 16 GB.
The server includes integrated iLO 2 remote management for out‑of‑band administration.
The server accepts 100‑240 VAC at 50‑60 Hz.
