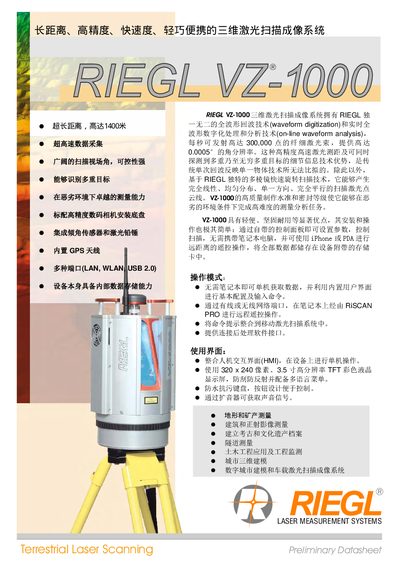

RIEGL VZ-1000 3D laser scanning imaging system, using unique waveform digitization technology and real-time waveform digitization and analysis technology, can emit up to 300,000 fine laser beams per second and provide up to 0.0005 ° angular resolution. It has the obvious advantages of being light, strong and durable, and its installation and operation are also very simple: parameters can be set and scanning can be controlled through the built-in control panel, without carrying a laptop, and iPhone or PDA can be used for remote control, and all data can be stored in the device's storage card.
The VZ-1000 provides ultra‑fast data acquisition with a scanning rate of up to 300,000 points per second and an angular resolution of 0.0005°. It can measure distances up to 1400 m and delivers a 100° × 360° field of view, making it suitable for surveying, archaeology, tunnel mapping, and city‑scale 3D modeling.
The system includes multiple data interfaces (LAN 10/100/1000 MBit/s, WLAN, USB 2.0), built‑in 32 GB flash storage, and optional external USB drives. Power is supplied by a rechargeable NiMH battery pack or an external 11‑32 V DC source, with smart power management and an IP64 protection rating for harsh environments.
| Maximum scanning range | 1400 m |
|---|---|
| Scanning accuracy (100 m) | 5 mm |
| Laser emission frequency | 300,000 points/s |
| Field of view | 100° × 360° |
| Weight | 9.8 kg |
| Internal storage | 32 GB flash |
| Typical power consumption | 82 W |
| Ingress protection rating | IP64 |
| Minimum range | 1.5 m |
| GPS accuracy | 2.5 m |
| Tilt sensor accuracy | ±0.008° |
The VZ-1000 can measure up to 1400 m under optimal conditions.
It can emit up to 300,000 points per second.
The system provides LAN (10/100/1000 MBit/s), WLAN, USB 2.0 for storage and camera, and a GPS antenna connector.
Yes, it includes 32 GB of built‑in flash memory and also supports external USB storage devices.
