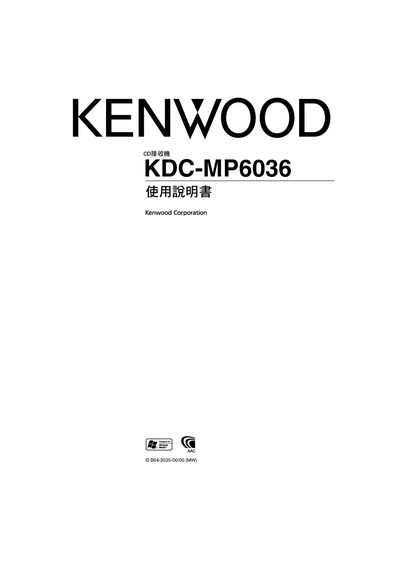

KDC-MP6036 User Manual, this manual provides a detailed introduction to the product's usage methods and features.
This manual begins with safety precautions and installation guidelines for the KDC-MP6036 CD receiver, including wiring requirements, mounting instructions, and warnings about environmental conditions. It also explains how to connect compatible CD changers and external audio sources.
The later sections cover operating controls such as volume, bass boost, DAB functions, and audio source selection, as well as detailed specifications of the receiver's FM/AM performance, CD playback formats, and troubleshooting procedures. This manual is written in Japanese.
| FM frequency range | 87.5 MHz – 108.0 MHz |
|---|---|
| AM frequency range | 531 kHz – 1611 kHz |
| FM sensitivity | SN = 30 dB |
| Impedance (FM) | 9.3 Ω |
| Frequency response | 30 Hz – 15 kHz |
| Dimensions (W × H × D) | 182 mm × 53 mm × 155 mm |
3‑inch (gcm) CDs are not supported and must not be inserted.
Connect the unit to a 12 V ground‑referenced power source.
