Roemheld B1.550 Massive Oil Vat User Manual

Double acting cylinder, rod end bearings, max working pressure 500bar

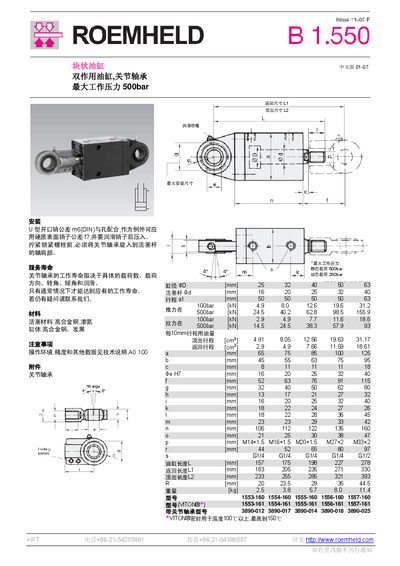

Roemheld B1.550 Massive Oil Vat User Manual - cover page
Brand
Roemheld
Category
Industrial Supply
Document type
User Manual
Language
Chinese
Pages
1
File format
PDF
File size
185 KB
Published
12 October, 2011
Updated
30 September, 2023
MD5 checksum
D9D7FF3F2C96A2A82CD1F7D74AE09BED
PDF
Roemheld B1.550 Massive Oil Vat User Manual PDF

About this manual

The B1.550 Massive Oil Vat from Roemheld is a high‑capacity hydraulic oil reservoir designed for demanding industrial applications. It features a maximum working pressure of 500 bar and a range of sizes to suit different load requirements.

This manual contains technical data, dimensional tables, safety precautions, and detailed instructions for installation, operation, and maintenance. It also lists recommended sealing materials and part numbers for replacement components. This manual is written in Chinese.

What's inside

  • Specifications
  • Dimensions
  • Operating Instructions
  • Safety Precautions
  • Attachments
  • Model Numbers

Specifications

Maximum working pressure500 bar
Weight range2.5–11.4 kg
Stroke length50–63 mm
L1 dimension44–97 mm

Frequently asked questions

What is the maximum working pressure of the B1.550 oil vat?

The B1.550 oil vat can operate up to a maximum pressure of 500 bar.

Which sealing material is recommended and what temperature range does it support?

VITON@ sealing material is recommended, suitable for temperatures from 100 °C up to 150 °C.

What are the dimensions L1 and L2 for the B1.550 series?

L1 ranges from 44 mm to 97 mm and L2 ranges from 233 mm to 393 mm depending on the size variant.
