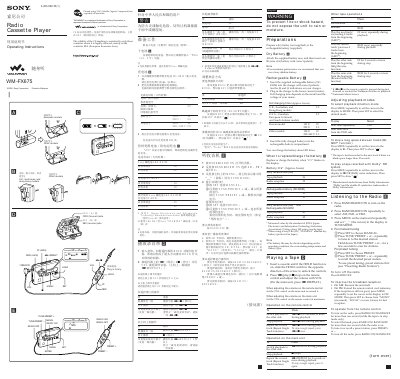

This manual covers the basic operation of the Sony WM-FX675 cassette player, including how to insert and play tapes, use the remote control, and adjust volume. It also explains the radio functions, presetting stations, and the various sound‑enhancement modes such as Dolby NR, Mega Bass, and Groove.
Battery information, safety precautions, and maintenance guidelines are provided, along with detailed technical specifications for the radio and tape sections, power requirements, dimensions, and accessories supplied with the unit.
| FM frequency range | 87.5 – 108 MHz |
|---|---|
| AM frequency range | 530 – 1710 kHz |
| Playback frequency response | 40 – 15 000 Hz |
| Headphone output load impedance | 8 – 300 Ω |
| Power requirement | 15 V |
| Dimensions (W×H×D) | 108.4 × 77.7 × 23.9 mm |
| Mass | 145 g (5.2 oz) |
| Rechargeable battery capacity | 600 mAh, 1.2 V Ni‑Cd |
| Dry battery type | One R6 (AA) battery |
Replace or charge the battery when the “<1” indicator flashes on the display. To charge, insert the supplied rechargeable battery (NC‑6WM) into the charger with correct polarity, plug the charger into the mains, and allow it to charge for the time indicated for your region’s voltage.
You can store up to 32 stations (12 each for FM1 and FM2, 8 for AM). Turn the radio on, press MENU until the cursor shows “PRESET”, use TUNE/PRESET + /‑ to select a frequency, then press ENTER to store it. Repeat for additional stations.
The FM band covers 87.5 MHz to 108 MHz, while the AM band covers 530 kHz to 1710 kHz (North, Central, and South America).
