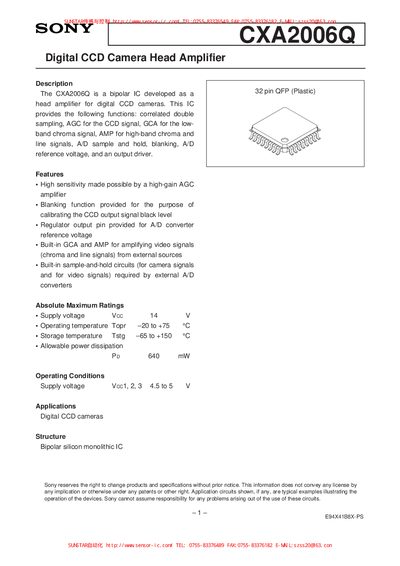

This document introduces the features of the CXA2006Q digital CCD camera head amplifier, including high sensitivity, high gain AGC amplifier, black level calibration, A/D reference voltage, external video signal amplification, and external A/D converter sample and hold.
The CXA2006Q is a bipolar silicon monolithic IC designed as a head amplifier for digital CCD cameras. It provides correlated double sampling, automatic gain control for CCD signals, gain control for low‑band chroma, amplification for high‑band chroma and line signals, as well as sample‑and‑hold circuits and an output driver.
The device is supplied in a 32‑pin plastic QFP package and operates with a 14 V supply, a temperature range of –20 °C to +75 °C, and a maximum power dissipation of 640 mW. It is intended for use in digital CCD camera applications.
| Supply voltage Vcc | 14 V |
|---|---|
| Operating temperature | -20 to +75 °C |
| Storage temperature | -65 to +150 °C |
| Maximum power dissipation | 640 mW |
| Package | 32‑pin QFP (plastic) |
The supply voltage Vcc is 14 V.
It operates from –20 °C to +75 °C.
It is supplied in a 32‑pin plastic QFP package.
The allowable power dissipation is 640 mW.
