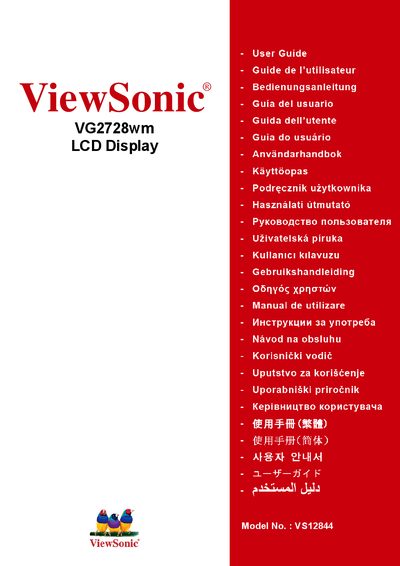

User manual of ViewSonic ® VG2728wm LCD display, including instructions for use, safety warnings, installation instructions, troubleshooting and more
This user manual covers all aspects of using the ViewSonic VG2728wm 27‑inch LCD display, including safety warnings, package contents, quick start, wall‑mount options, orientation changes, resolution settings, menu navigation, and troubleshooting. It also contains regulatory compliance details, environmental disposal instructions, and warranty terms.
Key sections include electromagnetic compatibility information, detailed technical specifications, step‑by‑step installation, screen‑image adjustment, cleaning procedures, and how to register the product for support. The document is intended for end‑users and service technicians who need to set up and maintain the monitor safely and correctly.
| Screen size | 27 inches (visible diagonal) |
|---|---|
| Resolution | 1920 × 1080 |
| Pixel pitch | 0.3114 mm |
| Input signal (RGB analog) | 0.7/1.0 Vp‑p, 75 Ω |
| Input signal (DVI‑D digital) | TMDS, 100 Ω |
| Power supply | 100‑240 VAC, 50/60 Hz |
| Dimensions (W × H × D) | 647.3 mm × 454.4 mm × 301.73 mm |
The optimal resolution is 1920 × 1080 at 60 Hz.
