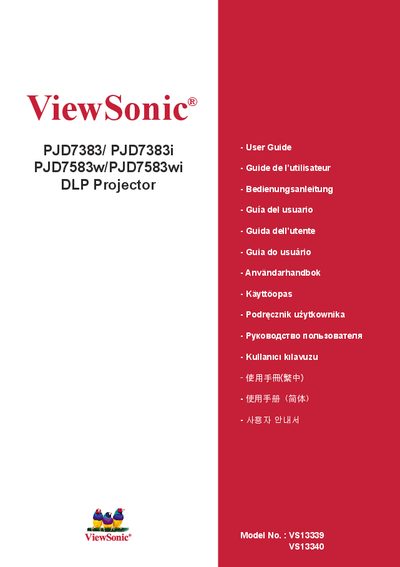

This document is the user guide of ViewSonic ® Model No. : VS13339 VS13340 PJD7383/ PJD7383i PJD7583w/PJD7583wi DLP Projector, which introduces the features and characteristics of the product
The ViewSonic DLP projector series combines a high‑performance optical engine with user‑friendly controls for reliable projection in a variety of environments. The guide covers safety precautions, installation options, wiring, menu operation, image adjustment, network control, and lamp maintenance.
Key sections include important safety instructions, item list, physical layout, control functions, connection methods (HDMI, VGA, USB, LAN, RS‑232), audio setup, standby mode, troubleshooting, and full technical specifications. The manual also provides warranty and support information. This manual is written in Chinese.
| Resolution | 1024 × 768 XGA / 1280 × 800 WXGA |
|---|---|
| Lamp Power | 210 W |
| Maximum Power Consumption | 329 W (standby < 1 W) |
| Weight | 3.5 kg (7.7 lb) |
| Power Input | AC 100–240 V, 3.29 A, 50/60 Hz |
| Operating Temperature | 0 °C – 40 °C (sea level) |
| Relative Humidity | 10 % – 90 % (non‑condensing) |
| Audio Output | 10 W speaker |
| Network Interface | 1 × RJ45 LAN port |
The projector operates on AC 100–240 V, 3.29 A, 50/60 Hz, with a maximum power consumption of 329 W and less than 1 W in standby mode.
