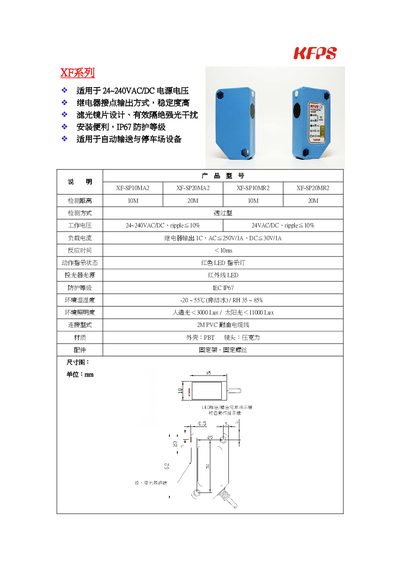

XF series sensors are suitable for 24~240VAC/DC power voltage, relay contact output method, high stability, filter lens design, effectively isolate strong light interference, easy to install, IP67 protection grade, suitable for automatic conveying and parking equipment.
The XF series devices are compact distance sensors featuring LED indicators, high‑contrast illumination, and robust environmental protection. They support a wide input voltage range and provide accurate distance measurement up to 20 m.
Key specifications include IP67 rating, operation from –20 °C to 55 °C, and various connector and material options. The document lists electrical, mechanical, and environmental parameters for each model variant. This manual is written in Japanese.
| Operating voltage | 24‑240 VAC/DC |
|---|---|
| Voltage ripple | 10 % |
| Maximum measurement distance | 10 m / 20 m (model dependent) |
| Current rating | 1 A AC, 30 V/1 A DC |
| Response time | 10 ms |
| LED indicator colors | Red for operation, other colors for status |
| IP rating | IP67 |
| Operating temperature | -20 °C to 55 °C |
| Relative humidity | 35 %–85 % RH |
| Illumination (lux) | 3000 lux – 11000 lux |
| Connector type | 2M PVC |
| Material | PBT (housing), acrylic (lens) |
The devices operate from 24 V to 240 V AC or DC with up to 10 % ripple.
Depending on the model, the maximum measurement distance is either 10 m or 20 m.
They are rated IP67 for dust and water protection.
The devices can operate from –20 °C up to 55 °C.
