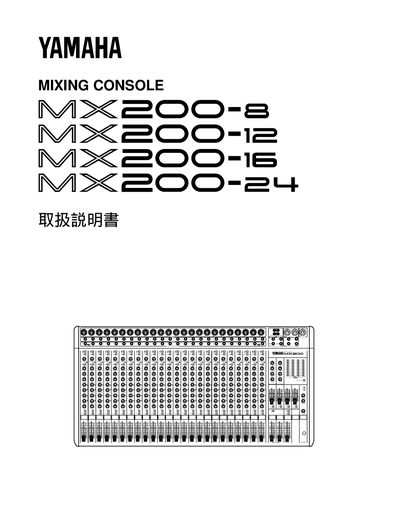

This manual introduces the Yamaha MX200 series mixing consoles, covering the 8, 12, 16 and 24‑channel versions. It explains the layout of the control panel, connector types, and basic operating concepts such as PFL, AFL, and AUX routing.
Safety precautions, power requirements, and service information are also included, along with dimension drawings for each model and guidance on warranty and repair procedures. This manual is written in Japanese.
| Input Channels | 8 (MX200-8), 12 (MX200-12), 16 (MX200-16), 24 (MX200-24) |
|---|---|
| Power Supply | AC100V, 50/60 Hz |
| Input Connectors | INPUT A: XLR, INPUT B: balanced phone |
The MX200‑8 has 8 channels, the MX200‑12 has 12, the MX200‑16 has 16, and the MX200‑24 has 24 input channels.
Connect the console to an AC100 V mains supply, either 50 Hz or 60 Hz.
INPUT A uses an XLR connector, while INPUT B uses a balanced phone (¼‑inch) connector.
