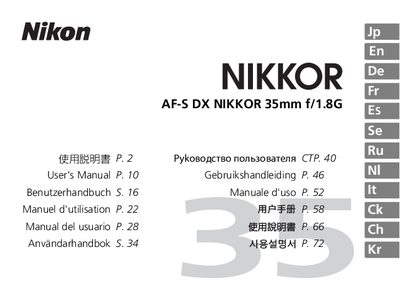

This user's manual introduces the use of the AF-S DX NIKKOR 35mm f/1.8G lens, including product features, specifications, usage, precautions, etc.
This manual explains safe handling of the AF‑S DX NIKKOR 35mm f/1.8 lens, including cautions against disassembly, exposure to fire or sunlight, and proper storage to prevent injury or damage. It also describes how to attach the lens to Nikon DX‑format DSLR cameras and how to use the focusing and aperture controls.
The document lists the lens’s technical specifications, such as focal length, maximum aperture, optical construction, and dimensions, and details the standard and optional accessories that accompany the product, including front and rear caps, a bayonet hood, and a flexible pouch.
| Focal length | 35mm |
|---|---|
| Maximum aperture | f/1.8 |
| Lens construction | 8 elements in 6 groups (1 aspherical) |
| Picture angle | 44º |
| Closest focusing distance | 0.3 m |
| Diaphragm blades | 7 (rounded) |
| Aperture range | f/1.8 – f/22 |
| Filter thread | 52 mm (P = 0.75 mm) |
| Dimensions | ≈70 mm × 52.5 mm |
| Weight | ≈200 g |
The standard kit includes a 52 mm snap‑on front cap (LC‑52), a rear cap (LF‑1), a bayonet hood (HB‑46) and a flexible lens pouch (CL‑0913); a 52 mm screw‑on filter is optional.
