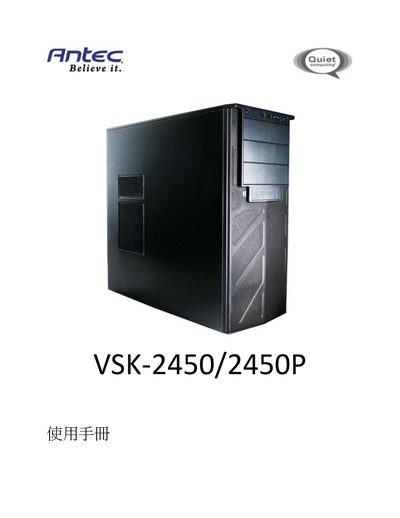

VSK-2450/2450P User Manual is the instruction manual for the medium-sized chassis launched by Antec, which introduces the chassis specifications, illustrations, power supply specifications, hardware installation guide, front panel wiring steps, cooling system and other content.
This manual describes the physical specifications of the Antec VSK-2450/2450P chassis, including its overall size (450 mm H × 200 mm W × 470 mm D) and weight (11.9 lb / 5.4 kg). It also lists the supported cooling configuration, such as one 120 mm TwoCool™ fan and two additional 120 mm fans.
Power input requirements are detailed, covering both 110‑120 VAC and 220‑240 VAC operation at 50/60 Hz, with current limits of up to 10 A at 115 VAC. The document provides a full pin‑out table for the case’s USB and power connectors, as well as safety and compliance notes.
| Height | 450 mm |
|---|---|
| Width | 200 mm |
| Depth | 470 mm |
| Weight | 11.9 lb / 5.4 kg |
| Fan Support | 1 × 120 mm TwoCool™ + 2 × 120 mm fans |
| Input Voltage | 110‑120 VAC / 220‑240 VAC ±10 % |
| Frequency | 50 Hz / 60 Hz |
| Maximum Current (115 VAC) | 10 A |
| Maximum Current (230 VAC) | 4.54 A |
| Power Supply Capacity | 360 W (30 A) on +12 V rail |
The case measures 450 mm high, 200 mm wide, and 470 mm deep.
It supports one 120 mm TwoCool™ fan and two additional 120 mm fans.
It accepts 110‑120 VAC or 220‑240 VAC at either 50 Hz or 60 Hz.
The +12 V rail can deliver up to 360 W (30 A).
